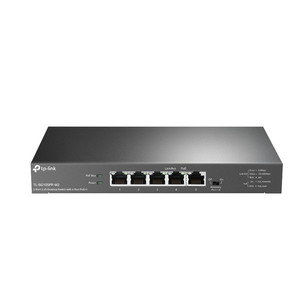

TP-LINK TL-SG105PP-M2 [5-Port 2.5G Desktop Switch with 4-Port PoE++]

★ 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports

★ With four PoE++ ports transfers data and power on one single cable

★ Works with IEEE 802.3af/at/bt type3 compliant PDs

★ 802.1p/DSCP QoS enable smooth latency-sensitive traffic

★ Supports PoE Power up to 60 W for each PoE++ port

★ Supports PoE Power up to 123 W for all PoE ports

★ PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

★ Plug and Play no configuration and installation required

* Interface…
・5×10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
・AUTO Negotiation
・AUTO MDI/MDIX
* Network Media…
・10BASE-T： UTP category 3、 4、 5 cable (maximum 100m)
・EIA/TIA-568 100Ω STP (maximum 100m)
・100BASE-TX： UTP category 5、 5e cable (maximum 100m)
・EIA/TIA-568 100Ω STP (maximum 100m)
・1000BASE-T： UTP category 5、 5e、 6 or above cable (maximum 100m)
・EIA/TIA-568 100Ω STP (maximum 100m)
* Fan Quantity：Fanless
* External Power Supply：External Power Adapter (Output： 53.5 VDC / 2.43 A)
* Packet Forwarding Rate：18.6 Mpps
* PoE Ports (RJ45)…
・Standard： 802.3 af/at/bt type3 compliant
・PoE++ Ports： Ports 1-4
・Power Supply： 123 W
* Mac Address Table：4K
* Switching Capacity：25 Gbps
* Dimensions ( W x D x H )：8.2×4.9×1.0 in (209×126×26 mm)
* Max Power Consumption…
・7.57 W (220/50 Hz. no PD connected)
・143.37 W (220/50 Hz. with 123 W PD connected)
* Max Heat Dissipation…
・25.81BTU/h (220 V/50 Hz with no PD connected)
・488.89 BTU/h (220 V/50 Hz with 123W PD connected)
【SOFTWARE FEATURES】
* Advanced Features…
・Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
・Mac Address Auto-Learning And Auto-Aging
・IEEE 802.3x Flow Control
・802.1p/DSCP QoS
・IGMP Snooping
・PoE Auto Recovery (Ports 1-4)
* Transfer Method：Store-And-Forward
* OTHERS
* Certification：FCC、 CE、 RoHS
* Package Contents…
・TL-SG105PP-M2
・Power Adapter
・Installation Guide
・Rubber Feet
* Environment…
・Operating Temperature： 0-40 ℃
・Storage Temperature： -40-70 ℃
・Operating Humidity： 10-90% RH non-condensing
・Storage Humidity： 5-90% RH non-condensing
